[Udemy] Data Engineering 101: The Beginner's Guide - End-to-end data pipeline in-depth(2)

Ingestion

• Ingestion = moving or ingesting data
• frequency
  • batch vs streaming
    • batch : slower = daily or hourly
    • streaming : faster = seconds to sub-seconds. real-time
  • micro-batch : combination of batch and streaming

Batch ingestion

• convenient
• less latency
• more forgiving
• Type

  • ETL : Extract → Transform → Load
    • traditional data warehouse : clean → put DW
      • why ETL needs cleaning? DW is expensive!
    • most common
  • ELT : Extract → Load → Transform
    • new trend
    • store raw data with little cleaning
    • for data lakehouse : cheaper than DW

Streaming ingestion

• error handling by dead-letter queue : reroute failed events
• challenge
  • strict latency
  • late-arriving data
  • delivered out of order
  • multiple delivery : more than once
  • retention period
    • too short → lost data
    • too long → slow performance
  • message size
• scalability
  • make sure auto scaling based on workload
  • buffer for fluctuating event volumes
• schema change
  • structured data = fixed schema : if you add column → break schema
  • communicate with upstream teams, validation and test to catch schema changes
    • schema migration is not perfect

How to ingest data

1. DB connection : connect directly to database
   • row-based
2. CDC(Change Data Capture) : capture the log(before and after)
3. other : APIs, Managed connectors, Streaming
   • API : lot of manual work to connect, frequently error(error-prone)
   • Managed connectors : pre-built APIs, need some custom code
   • Streaming : real-time data



Transformation

• Transformation : change shape of data for business

Query

• asking question about data
• retrieving the data from storage & manipulating that data
• type
  • DDL : definition. create, drop, alter etc
  • DML : manpulation. select, insert, update, delete
  • DCL : control. grant etc
• process
  1. query issued
  2. parsing : validate query
  3. query planning : how to get answer from the storage system
  4. optimization : differenct in performance in cost
     • How to
       • reduce the search space : always filter, prune first
       • use explain SQL statement : for complex query
       • pre-join frequently joined tables : multiple tables are expensive
       • vaccum dead record : unused record = take up more space & interface with optimizer
       • leverage caching
         • cache the expensive query → improve average performance
         • return stale(out-date) result
  5. execution : result back
• query streaming data






  • window : tiny batches by grouping events
  • enrichment : steaming data + other data
  • stream-to-stream joining : combine multiple stream

data modeling

• data model : simplified version of the real world
• purpose : understanding business data & consistent definitions
  • need
    • communicate with data consumers
    • model the data at the lowest granularity possible
      • e.g) not aggreate data first, create raw data table first
• step
  1. conceptual : visualize data entities by ER diagram(ERD)
  2. logical : visualize data relationships by ER diagram(ERD)
  3. physical : visulize data entities, relationships, FK/PK by ER diagram(ERD)
• normalization
  • denormalized tables?
    • convenient(no need to search another table) but duplicated
      • create normalized table first, then denormalized data
    • if one of the row failed to update & duplicated → corrupted data
  • no duplicates : seperate the data tables
  • DRY “Don’t Repeat Yourself”

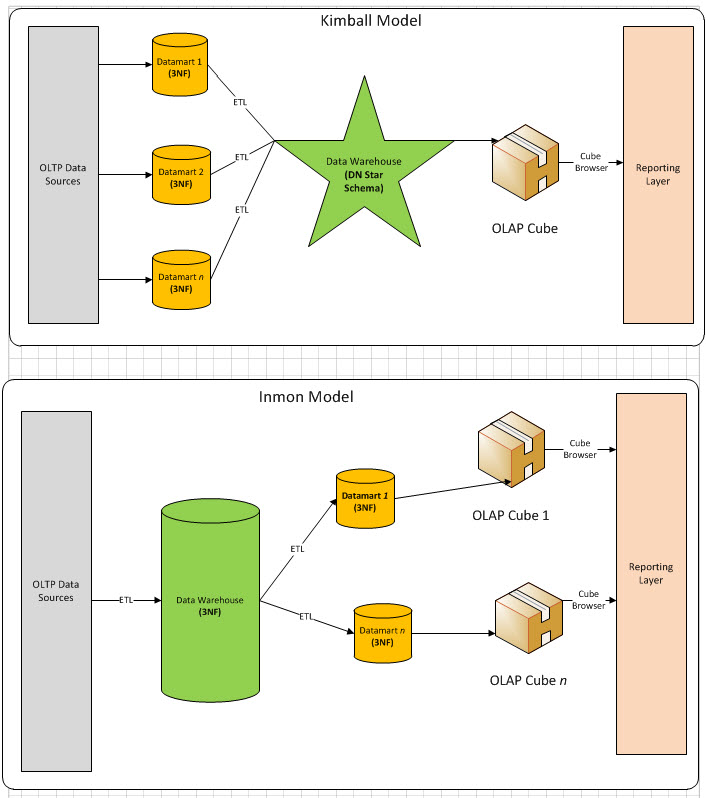

• technique






  • inmon : highly normalized data
  • kimball : denormalized data
    • flexibility
    • faster interaction
    • duplicate data using star schema(fact tables and dimension tables)
  • data vault : 3 entities
    • hubs : core business concept
    • links : relationships between hubs and satelites
    • satelites : store information about hubs
  • wide tables: join many related tables into a single highly denormalized table
    • many columns than before = wide
    • denormalized table pattern(wide table) is becoming popular!
      • less rigid(strict) than other patterns
      • faster analytical query : because of pre-joining
      • normalized patterns
        • invented when storage was expensive & tightly coupled with compute → has to be modeled carefully
        • but these days, storage is cheap → denormalized form for analysis
• orchestrate : a lot of queries to transform raw data into target data → complex
  • e.g) airflow, dexter
• SQL vs Code
  • when quries are easier to do in SQL → SQL
  • when quries are complex → Python or Pyspark
• Views and materializations
  • Views : virtual tables. not stored in physical storage
    • re-computed when you need view
    • data is always fresh
  • materialization : store the query in physical storage
• Events vs States
  • Event : Immutable. unchange
  • State : Mutable. change
• Streaming vs batch
  • streaming : continuous stream of immutable events
    • require more computing power & is more costly
    • low-latency, real-time
  • batch : window over this continuous stream of events
    • sorted and aggregated



Serving

• final step for data pipeline
• analytics : BI
  • which metrics are useful : put yourself in data consumer’s shoes
  • Trust is very hard to gain but easy to lose
    • monitoring metrics
    • communicate data consumers
• ML/AI
  • scalability : ML/AI dataset can be very large
    • local notebook won’t be enough → cloud based notebook
  • feature stores : for classic ML
  • object storage
  • data lakehouse



  ML	DL
  tabular data, structured data	unstructured data
  limited feature	large feature
  smaller	larger
  CPU	GPU

• Reverse ETL : storage → source system



Reference

* https://bennyaustin.com/2010/05/02/kimball-and-inmon-dw-models/
